AMC600
AMC600
AMC600

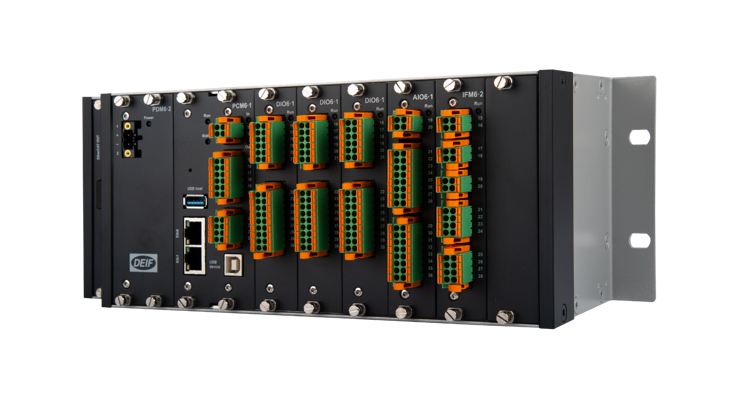

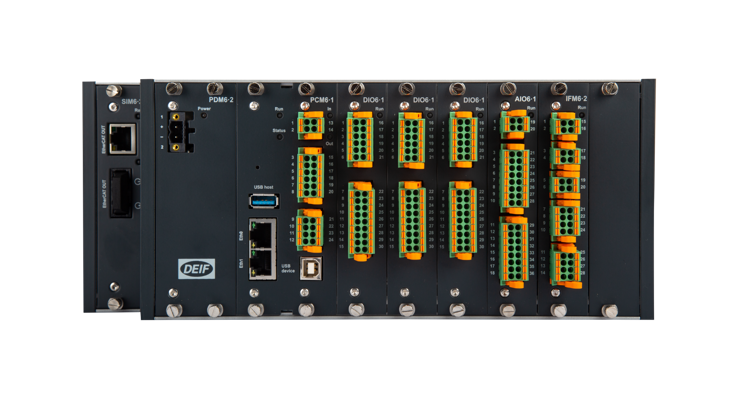

AMC 600 is a programmable automation controller (PAC) for land, marine, and wind power control applications. It supports protocols such as EtherCAT, PROFINET, MODBUS TCP/RTU, OPC UA, and HTTPS/WSS for cloud connectivity. AMC 6OO is known for its modular, service-friendly design, compact size, and extensive customisation options.
Select Quantity:
Features
Cold start-up/Operating temperature: -40 to 70 °C
Storage temperature: -40 to 85 °C
Climate: 55 °C 97 % RH condensing
Altitude: < 4000 m
Vibration : 2.1 g (3.2 to 50 Hz) 1.0g (13.2 to 100 Hz)
Shock: 50 g, 11 ms, half sine
Bump: 25 g, 6 ms, half sine
New platform formfactor – height of just 122 mm; depth 114 mm
Design lifetime of no less than 10 years at 40 ºC surrounding temperatures
Backplane mounted rack ensuring stable inter-module communication during operation in the entire products lifetime
Fully production tested control system units lowering in-sourcing costs for series production at customer
Suitable for stationary, mobile, wind turbine retrofit
Increased mechanical robustness
Increased electrical protection levels ; ESD up to 6kV, up to 4kV on power inputs and 2kV on all signal and communication power for fast transients protections
Designed the input circuits with protections against failure connections
Cold start up in very low-temperature without pre-heating
Proven electronics design for demanding condensing climates
Built-in standard EtherCAT as native communication protocol for use as distributed I/O
High density IO modules
24V DC Digital Inputs, Digital Outputs, Voltage / Current Analogue Inputs, PT-100 inputs
Condition monitoring modules with High Frequency Analogue Inputs
Support for most widely used fieldbusses : CAN/CANopen, PROFINET, RS-422/485, TCP/IP ( OPC UA, Modbus TCP etc. )
Warranty: 2 years (not including wearable parts) with option to 5 totally years
