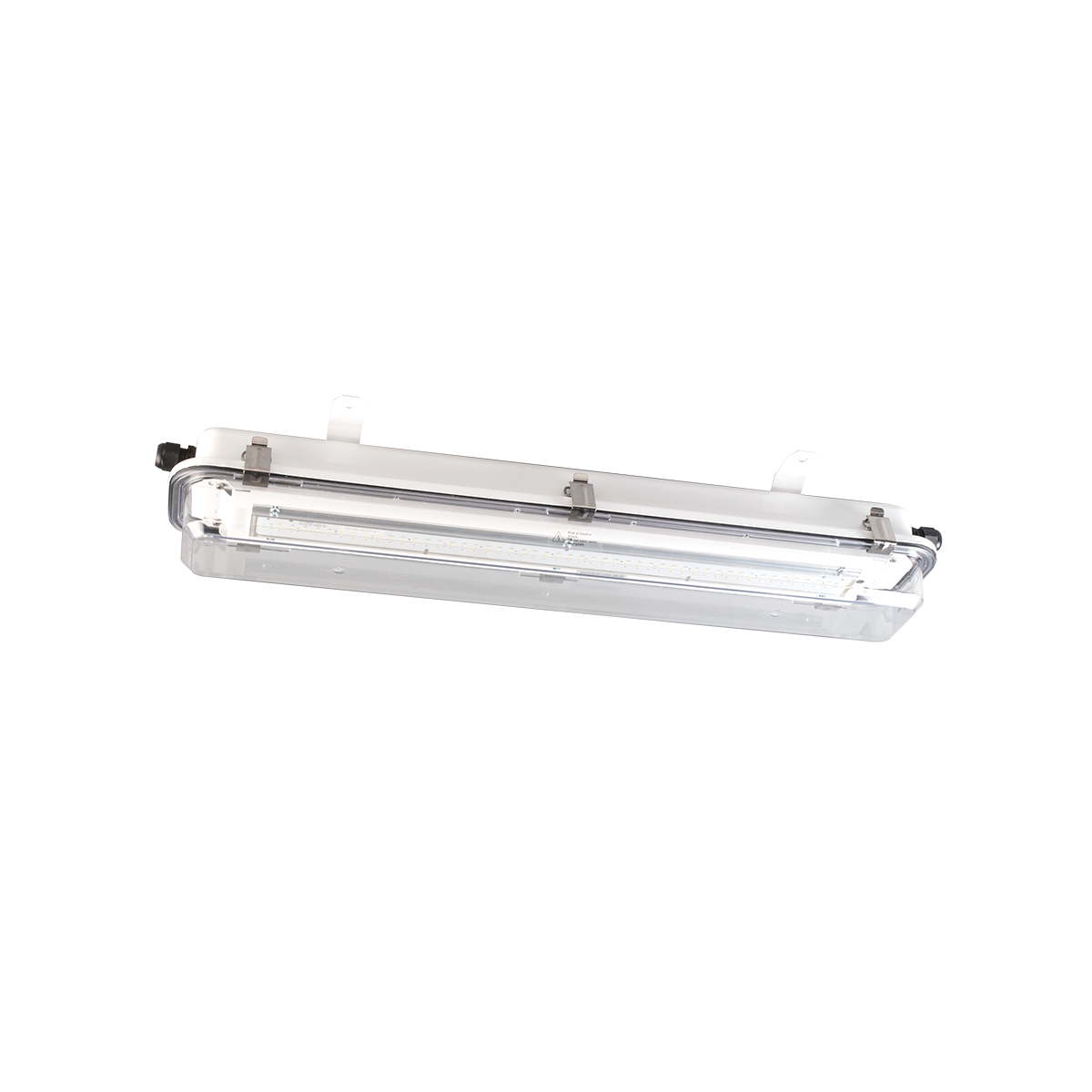

EX40 S
The EX40 S is an explosion‑proof luminaire, optimized to deliver greater safety, efficiency, and reliability. The updated model is ATEX‑certified and compliant with current standards and guidelines, offering improved performance compared to the previous version.
Select Quantity:
Features
ATEX Certification:
II 2G Ex eb mb IIC T5 Gb
II 2D Ex tb IIIC T55°C or T70°C Db
Zones: 1, 2, 21, 22
Operating Temperature: –40°C to +60°C
Protection Class: IP66, IP67
Impact Resistance: IK10
Item Number: 5108005200-XXX
Application: Cruise / Offshore / Naval / Commercial
Nominal Voltage: 220–240V, 0/50–60Hz
Nominal Voltage Battery System: 220-240V, 50-60Hz
Battery: NiMH
Control Mode: DALI-2 (optional)
CCT: 4500K*
CRI: >85
Luminous Flux: 2700 lm
Lifetime: >100,000 h
*other color temperatures on request
