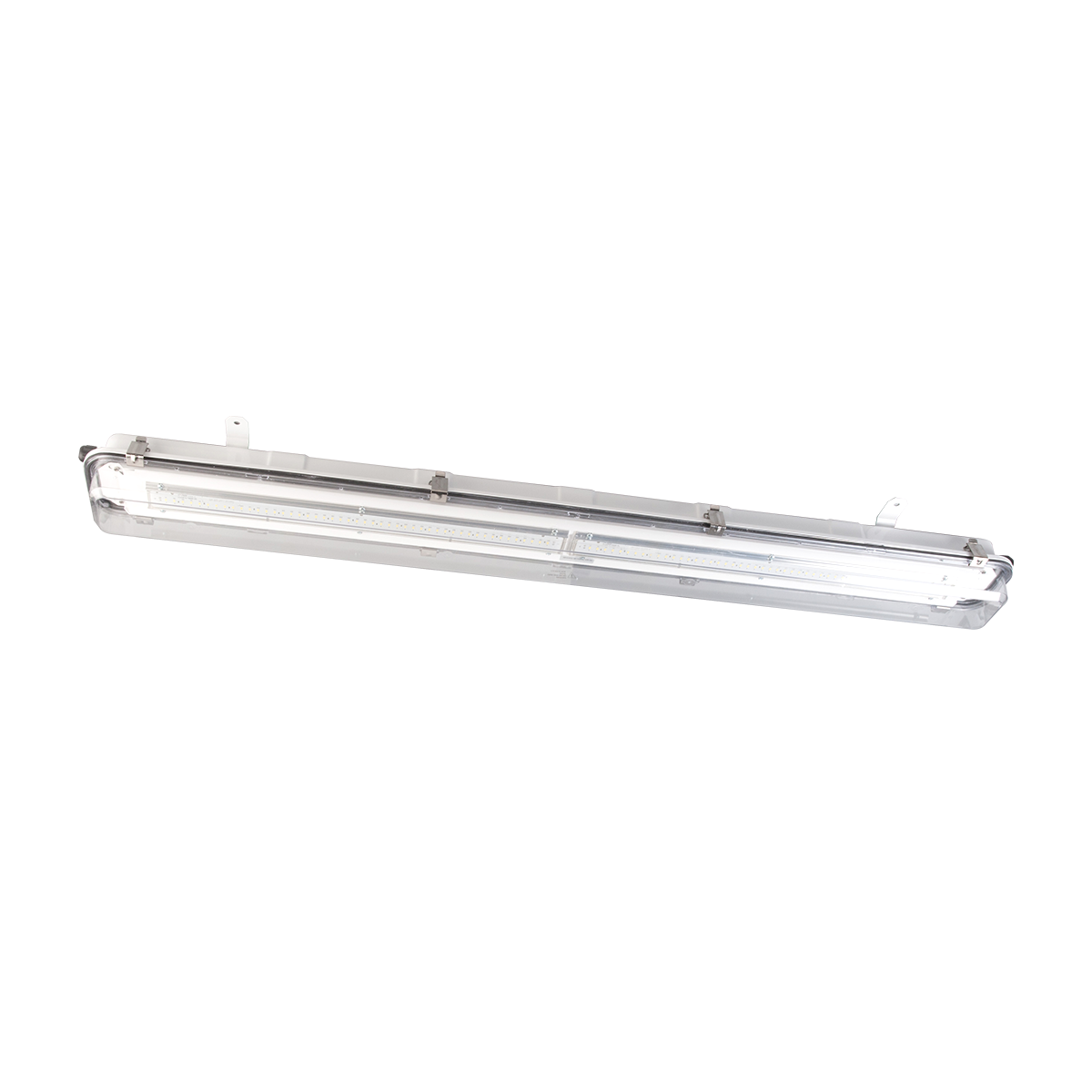

EX40 L
The EX40 L is an explosion‑proof luminaire series. The new model offers enhanced technical performance and improved luminous output while remaining fully compliant with all ATEX requirements.
Select Quantity:
Features
Features
ATEX Certification:
II 2G Ex eb mb IIC T5 Gb
II 2D Ex tb IIIC T55°C or T70°C Db
Zones: 1, 2, 21, 22
Operating Temperature: –40°C to +60°C
Protection Class: IP66, IP67
Impact Resistance: IK10
Item Number: 5108005300-XXX
Application: Cruise / Offshore / Naval / Commercial
Nominal Voltage: 220–240V, 50–60Hz
Nominal Voltage Battery System: 220-240V, 50-60Hz
Battery: NiMH
Control Mode: DALI-2 (optional)
CCT: 4500K*
CRI: >85
Luminous Flux: 5400 lm
Lifetime: >100,000 h
*other color temperatures on request
