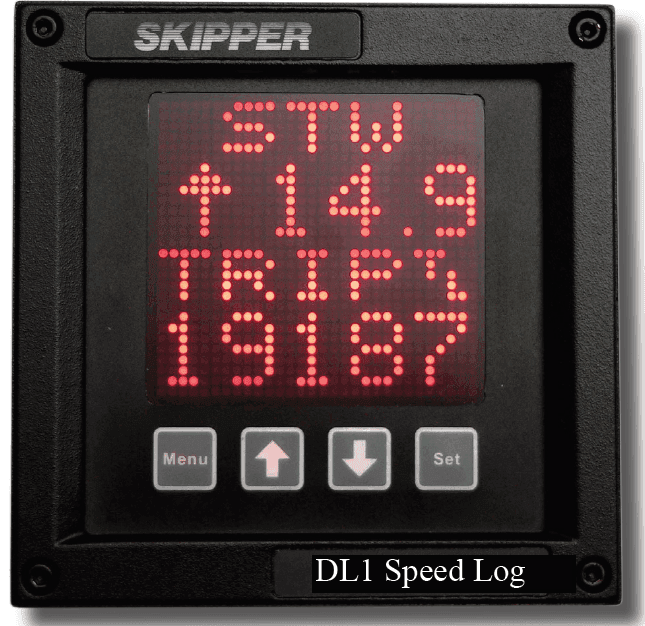

SKIPPER DL1
The SKIPPER DL1 measures the speed of the vessel through the water at all times in depth >3m. The system includes a single sensor mounted in a tank or sea valve. The display housing can be mounted anywhere on the bridge. An electronic unit can be placed wherever it is most convenient for connection. A LAN port within the electronic unit allows for easy installation and diagnostics from a web page. Product highlights include:
- Speed through water in 1 axis
- Water temperature
- Interfaces – NMEA 0183
- Display – 28 x 30 LED dot matrix with full night dimming
- 3 easy to use user programmable displays, integrated menus
- Fully automatic settings
- Mounting options – Tank, sea valve for single or double bottom hull designs
Product Details
Manufacturer
SKIPPER
Category
Navigation
Sub-category
Speed Logs
Download Brochures
Specifications Overview
- Number of Axis
1 - Speed range Long
±50 knots - Water track measiring distance from sensor
0.5m – 3m - Minimum water depth below transducer
3m - Accuracy (better than)
0.2 knots or 2 % whichever is greater - Speed resolution
0.1 - Temperature accuracy
Better than 1 °C - Temp resolution
0.1 - Compact Display
28 x 30 LEDs - Mounting dimensions Compact Display
124mm x 124mm Bracket or panel mounting - Front plate Compact Display
144mm x 144mm to DIN standard - Cabinet mounting depth with cable
90mm - Weight cabinet
2.5kg - Standard cable length for sensor
40m
