TDU
TDU

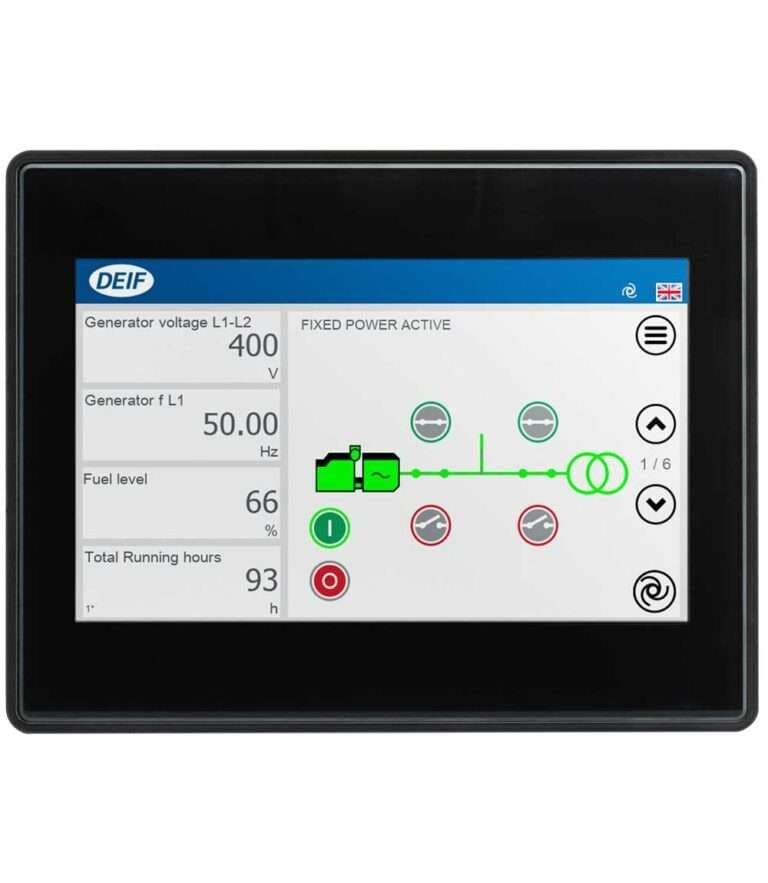

TDU 107 is a preprogrammed touch screen solution for connection to DEIF’s AGC-4 Mk II controllers.
The display provides user-friendly touch screen control, visualisations and graphical overviews that are easily readable even at sharp angles.
Combines both an HMI display and 6 AOP (Additional Operator Panel) on one device. Easy to use icon driven HMI providing fast access and configurable instrument pages.
The TDU 107 is available in two versions:
TDU 107 Core
Operating temperature 0ºC to 50ºC
1 ethernet port for connection to the controller
TDU 107 Extended
Operating temperature -20ºC to 60º C True glass front

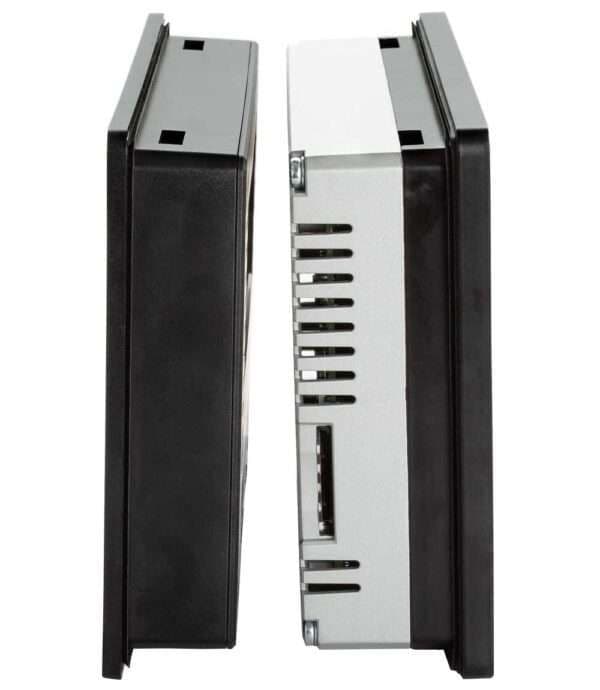

Robust aluminium housing
2 bridged Ethernet ports for connection to the controller
Remote access (via VNC connection)
Product Details
Manufacturer
DEIF
Category
Electrical Industrial
Sub-category
Controllers
Download Brochures
Download Data Sheets
- Plug and play
- Build in AOP (additional operators panel) customization buttons and status lamps
- Quick instrument selection directly from the screen
- Tier 4 Final support with automatic jump to dedicated Tier 4 page
- Visual capability curve with actual working point of the genset
- Easy search functionality in several menus
- Live application supervision
- Possibility to merge alarm and event logs
- Service menu with estimated date for next service
- Live I/O overview
