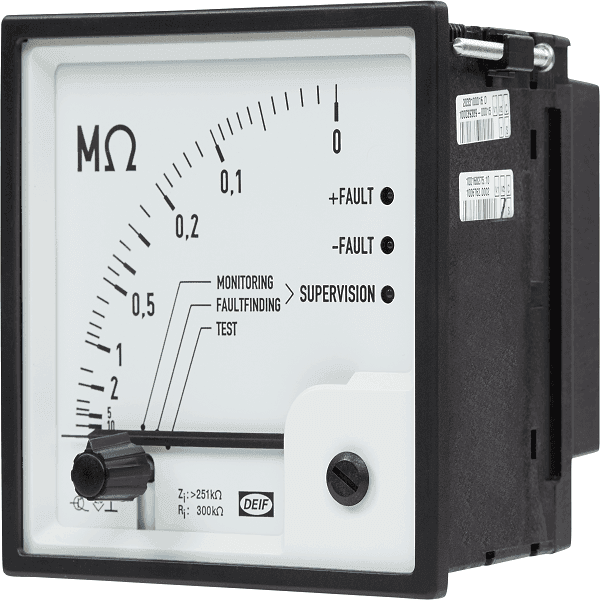

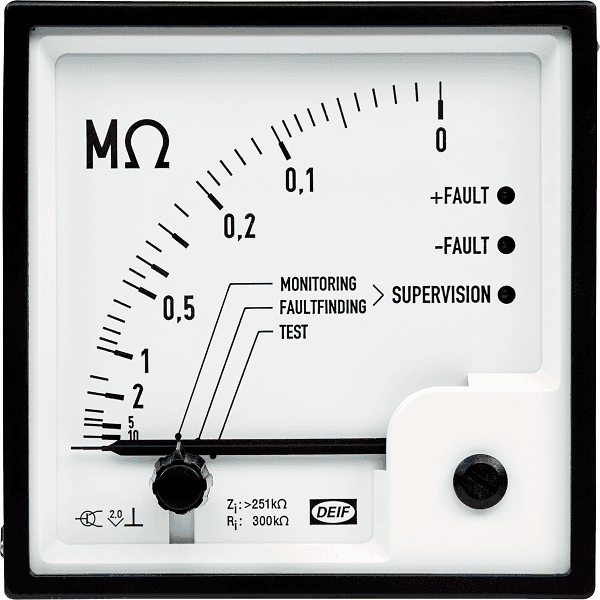

SIM-Q MK II

The SIM-Q MKII is particularly suitable for high-end monitoring of AC/DC networks characterized by high leakage capacitance. A low frequency (LF) version of the SIM-Q MKII is available for thruster systems with 5-20Hz frequency variations. The SIM-Q MKII uses a patented measuring method, where a ±25 V DC voltage is superimposed to the system being monitored. To be able to eliminate the influence from the monitored network capacitance and AC/DC components, the SIM-Q MKII performs an automatic measuring cycle that will compensate for these.
