MRF
MSMAIS, Racon & Remote Monitoring
MRF

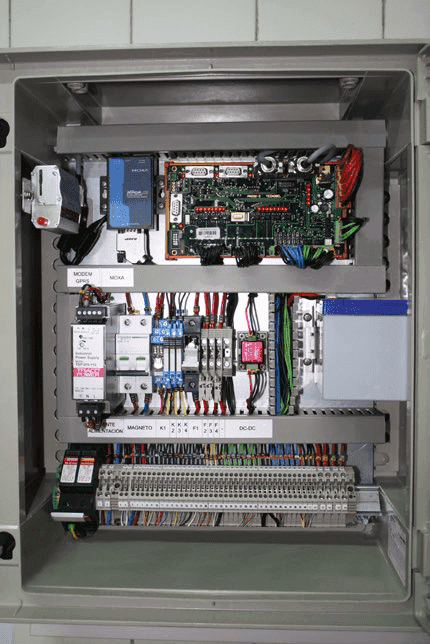

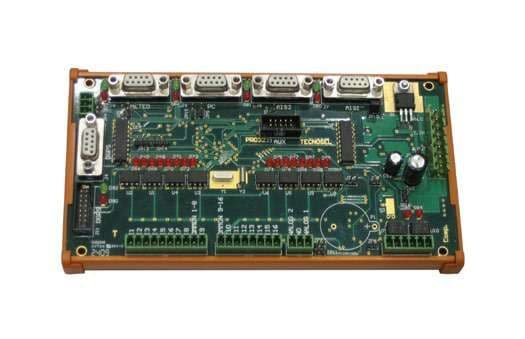

MRF Remote Control Unit is a universal device designed for AtoN remote monitoring, especially for long-range beacons and major lighthouses. It has multiple digital and analogical inputs and outputs, opto-coupled which may be timed and adjusted at different levels by a configuration software; as well as to configure their logic, being easily adapted to any control system installed into a lighthouse or beacon. The unit uses different communication modems, depending on the way selected: GSM, radio, AIS, satellite, IP, microwaves, fiber optic, etc.
Product Details
Manufacturer
MSM
Category
Aids to Navigation
Sub-category
AIS, Racon & Remote Monitoring
Download Brochures
- Compatible with lighthouses and rotating beacons, with lamps and LEDs.
- Monitoring of solar power supply systems, diesel generators, etc.
- Direct current measurement for solar charging up to 15 A, or up
to 10 0A with external Hall sensors. - Rotation alarm detection for lighthouses through a magnetic
rotation sensor. - 12 or 24 V d.c. power supply.
- Analogical inputs by voltage or current, with configurable alarm
threshold detection. Current measurement up to 100 A. - GPS, DGPS modules are available as an option.
Configuration and testing software for PC, and remote
programming. - Reverse-polarity and atmospheric over-surge protections.
- Configurable sleep mode is available in order to save energy.
- Redundant communications are available with several modems
and different technologies.
