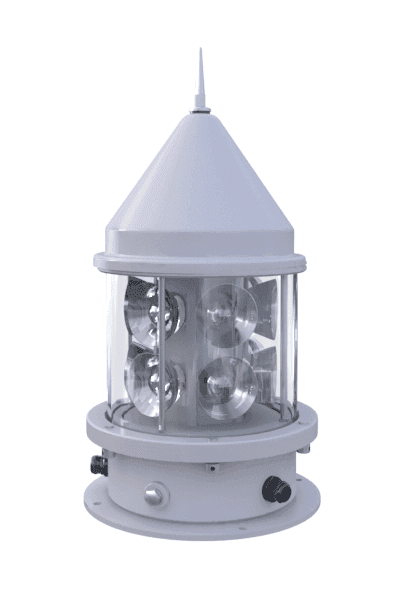

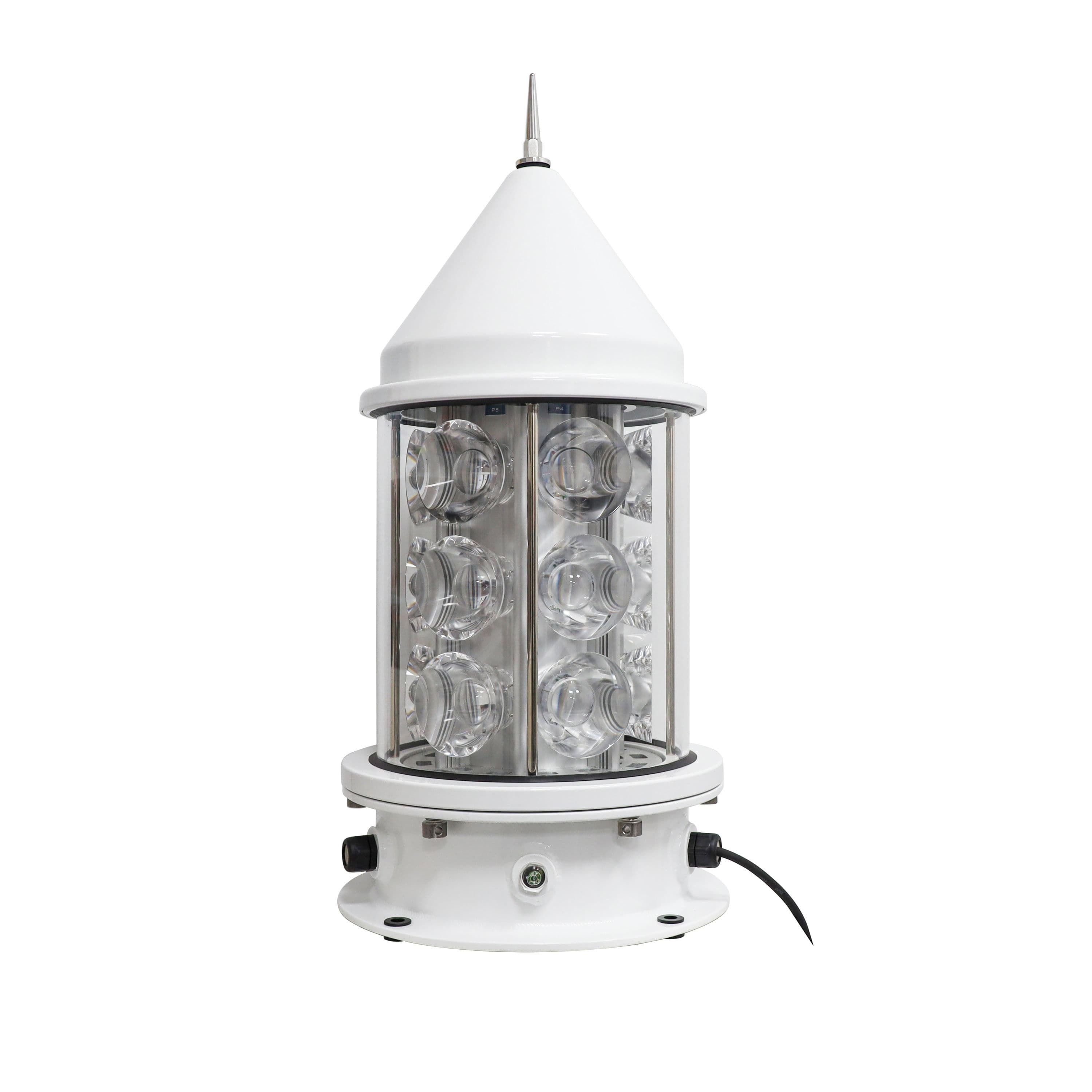

MBR300R
MSMLED Rotating Beacons
MBR300R
The MBR300R is a medium and long-range rotating beacon, fitted with state-of-the-art LED instead of marine lamps. This provides a low-consumption and low-maintenance beacon for more than 100,000 hours. It is ideally designed for isolated solar installations, able to reach up to 25 nautical miles.
Product Details
Manufacturer
MSM
Category
Aids to Navigation
Sub-category
LED Rotating Beacons
Download Data Sheets
- State-of-the-art LED technology.
- Maximum-efficiency luminous system. Up to 25 nm (T=0.74).
- Up to 100 W power consumption. Intensity adjustable by PWM.
- Average operation lifetime over 15 years.
- Compact design.
- Maintenance-free, brushless direct-drive motor.
- Rotating speed programmable from 0.5 to 10 rpm.
- Status and alarms available for remote monitoring, by opto-isolated signals and RS-232 serial port.
- Short-circuit, reverse-polarity and transient over-voltage protections.
- Easy installation.
- Minimum maintenance.
