AWC500
DEIFPLC
AWC500

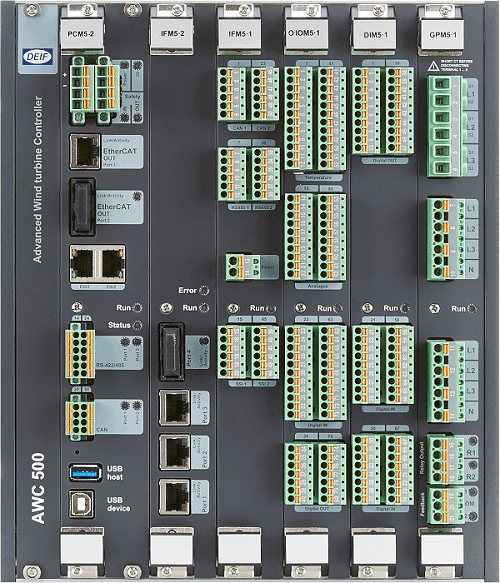

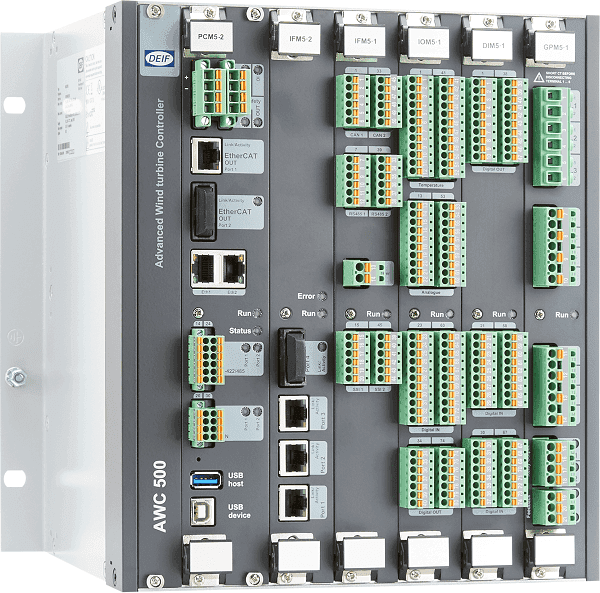

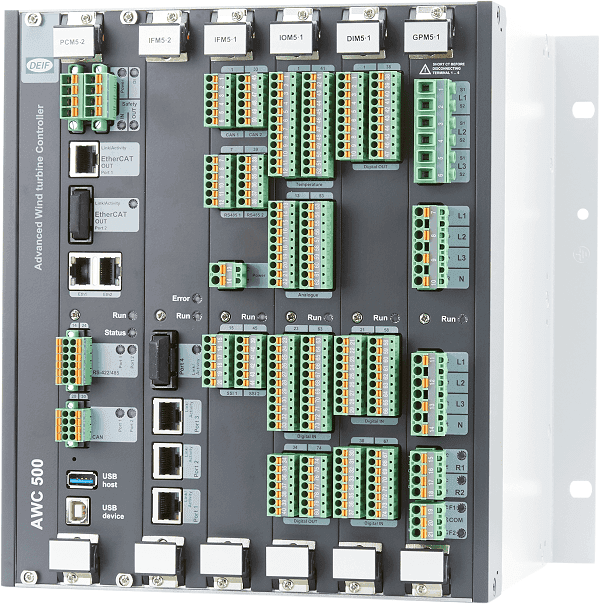

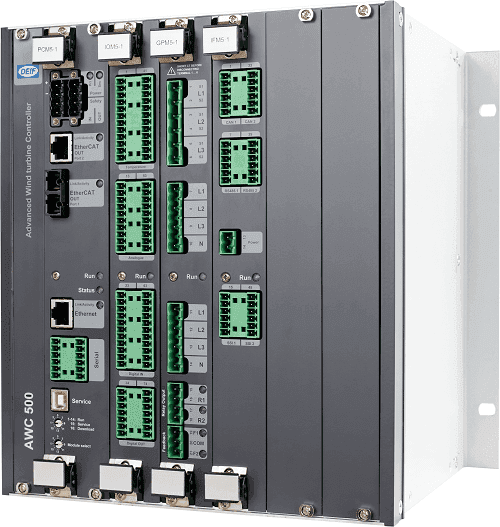

The AWC 500 Advanced Controller ( PLC-based PAC ) is the latest addition to our AWC controller series. AWC 500 offers an unprecedented and unrivaled level of robustness. Not only on mechanical and electrical parameters does the AWC 500 constitute the most robust solution in the industry. The controller is suitable for the cold climate or extended temperature operation. With its embedded real-time Linux operating system and CODESYS CONTROL PLC run-time, the AWC 500 also offers a maximum of stability in terms of execution of the application software.
Product Details
Manufacturer
DEIF
Category
Electrical Industrial
Sub-category
PLC
Download Brochures
Download Data Sheets
- Cold start-up/Operating temperature: -40 to 70°C
- Storage temperature: -40 to 85 °
- Climate: 55 °C 97 % RH condensing
- Altitude: 4000 m
- Vibration : 2.1 g (3.2 to 50 Hz) 1.0g (13.2 to 100 Hz)
- Shock: 50 g, 11 ms, half-sine
- Bump: 25 g, 6 ms, half-sine
- Direct 3-phase 690 V voltage and 1/5A current measurement, with class 0.5 Power measurement
- Fully EtherCAT-based I/O and CAN, SSI, TCP/IP, RS-422/485 communication interfaces
- Operating system software with fail-safe update
- Fault-tolerant file system
- Open software development with Linux, C/C++, CODESYS (IEC 61131-3)
